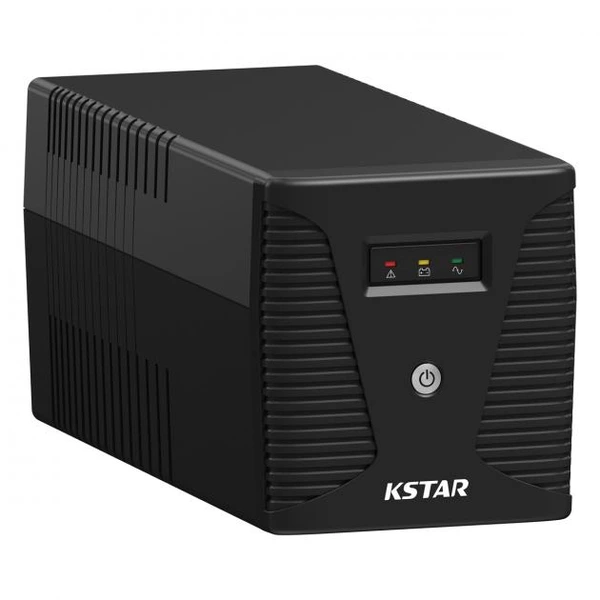

KSTAR UPS 1200V

Availability:

4 in stock


02YEAR SINGER WARRANTY (1YEAR BATTERY WARRANTY)

Rs. 28,000

4 in stock

Type Line Interactive UPS
Model UA120
Capacity (VA/Watts) 1200VA/720W
Safety / Protection Overload And Overcharge Protection
Indicators AC Mode, Battery Mode, Load Level, Battery Leve
Input/Output UPS Input/Output : 1P+N+E / 1P+N+E (230V 50Hz) Universal Power Outlet, Output Sockets : 04 Nos
Other Features Part 1 Excellent Microprocessor Control Guarantees High Reliability. (Internal Self-Diagnostic Technology), Boost And Buck AVR For Voltage Stabilization. (Wide Input Range With Two Boost And One Buck Control)
Other Features Part 2 Auto Restart While Ac Is Recovering. | Cold Start Function. | Off-Mode Charging. | Fast Intelligent Battery Recharge Function. | Generator Compatible.
Standards Safety: IEC/EN62040-1;IEC/EN60950-1 | EMC: IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8
Dimensions 149.3×353×162 W x D x H (mm)
Weight 8.4 kg
Colors Black
Other Information This UPS is specially designed for Personal Computer with multi-functions. lts light weight, compact design perfect fits to the limited working environment. The line of UPS is equipped with two boost and one buck AVR to stabilize wide input voltage range. lt is also built-in with DC start function. This function enables the UPS to be started up without AC power supply. It not only offers great comprehensive power protection against surges and spikes, but also provides pure voltage with AC voltage stabilizer.

Input

Nominal Input Voltage 220/230/240 Vac
Operating Voltage Range 162-290 Vac
Operating Frequency Range 50/60 Hz (1±10%) (Auto Sensing)

Output

Output Voltage Range (Batt. Mode) Simulated Sinewave At Nominal Voltage ±10%
Frequency Range (Batt. Mode) 50 Hz Or 60 Hz ± 1 Hz
Transfer Time Typical 2-6 ms, 10ms Max.
Waveform (Batt. Mode) Simulated Sinewave

Battery

Voltage 24Vdc
Battery Type / Number 12V/7Ah x 2
Typical Recharge Time 6-8 Hours ( To 90% Capacity)

Alarm

Battery Mode Sounding Every 10 Seconds
Battery Low Sounding Every Second
Overload Sounding Every 0.5 Second
Battery Replacement Alarm Sounding Every 2 Seconds
Fault Continuously Sounding

Environment

Operating Temperature 0 – 40°C
Humidity Range 0-95 % (Non-Condensing)
Noise Level <40db (1 Meter From Surface)
